Navico

S5100 Sonar Module

$2,256.35 AUD
$2,481.99 AUD $2,256.35 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
This is a Sample Product Title
Was $200.00 Now $100.00

Warranty Details

All claims are subject to standard testing procedures by its authorised representatives. Should a battery be deemed defective due to a manufacturing fault and is within its applicable warranty period; it will be replaced with an equivalent battery free of charge. Proof of purchase is required. You bear all transportation costs to and from testing centres. The warranty period is not renewed or extended as a result of a repair or replacement. Warranty is not transferable and is only offered to the original end user of the product. Cease using the goods when a fault arises and contact the supplier or manufacturer immediately. Warranty does not cover discharged batteries or diminishing capacity due to battery age and depth of discharge. This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. All warranties are to go through the manufacturer. Click here for full warranty details

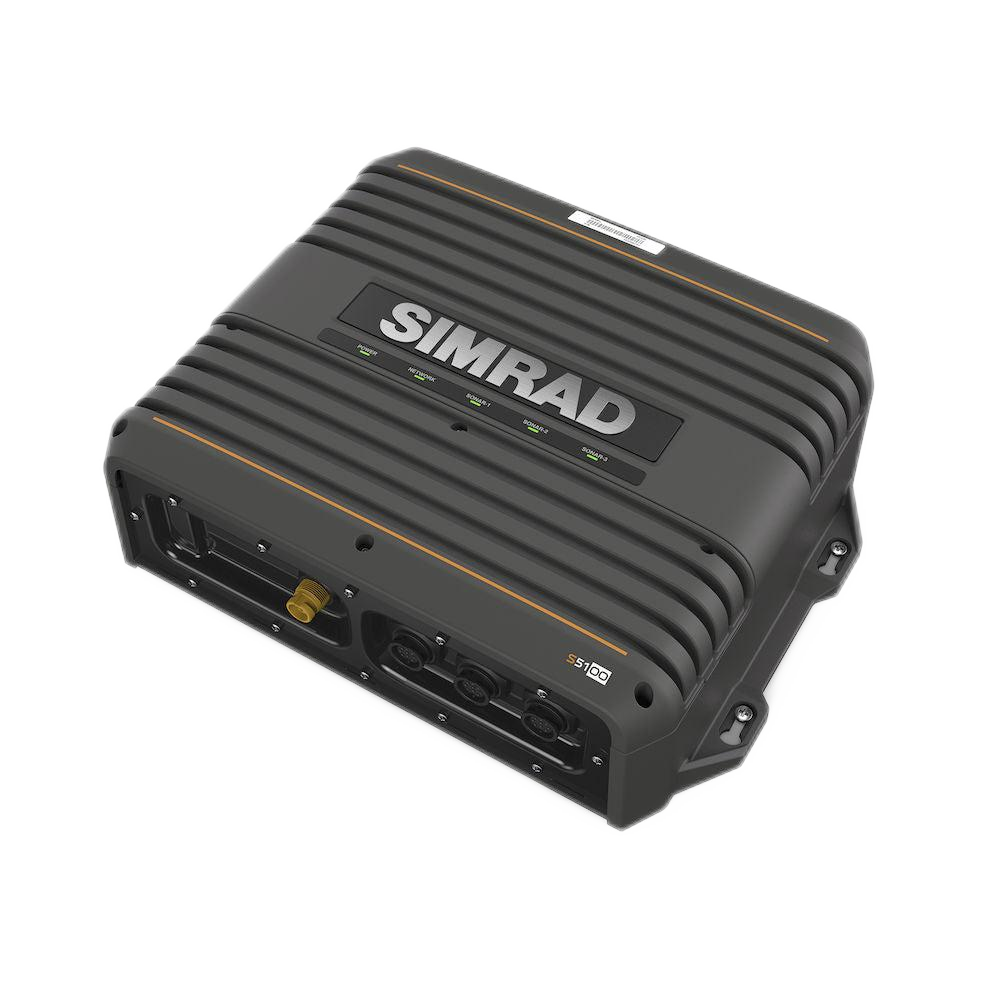

S5100 Sonar Module

S5100 High-performance CHIRP sonar module. Three fully independent channels able to deliver high-resolution sonar coverage across multiple depth ranges, precision-focused for offshore sportfishing anglers.

Up to Three Transducers for Ultimate Visibility
The S5100 is our first sounder module to feature three fully independent sonar channels, delivering true simultaneous coverage of up to three different depth ranges with uncompromising performance at every range. Connect three single-channel transducers, or pair one dual-channel and one single-channel, to create the perfect sonar coverage for the areas you fish and the species you target. Because all three sonar channels are completely independent, different frequency ranges can be viewed simultaneously a split-screen layout on a single display.

Sharper Target Resolution, Wider Coverage
CHIRP technology uses frequency-swept pulses to provide improved target resolution and noise rejection compared to traditional single-frequency sonar. With the S5100’s advanced CHIRP technology, you’ll see clear to the bottom with no mid-water noise or clutter. The S5100 is also compatible with Airmar’s wide‐angle CHIRP transducers; these deliver enhanced coverage of the upper water column, and are a perfect fit for targeting pelagic species. Wide-angle transducers are also useful in shallow water, where traditional narrow beam angles can provide limited bottom coverage. A wider coverage area not only speeds your search, but means individual fish targets are easier to see.

Plug-and-Play Display Compatibility
The S5100 can be used to add sonar capabilities to a modular Simrad display system, or to provide additional sonar capabilities on multifunction displays or fish finders with built-in sounder technology. High-speed Ethernet connectivity enables easy installation almost anywhere on board, on vessels of any size.

Three fully independent sonar channels

High-resolution, noise-free clarity at all depth ranges

Combine any three CHIRP frequency ranges to target multiple depths

Compatible with wide-angle transducers for greater coverage

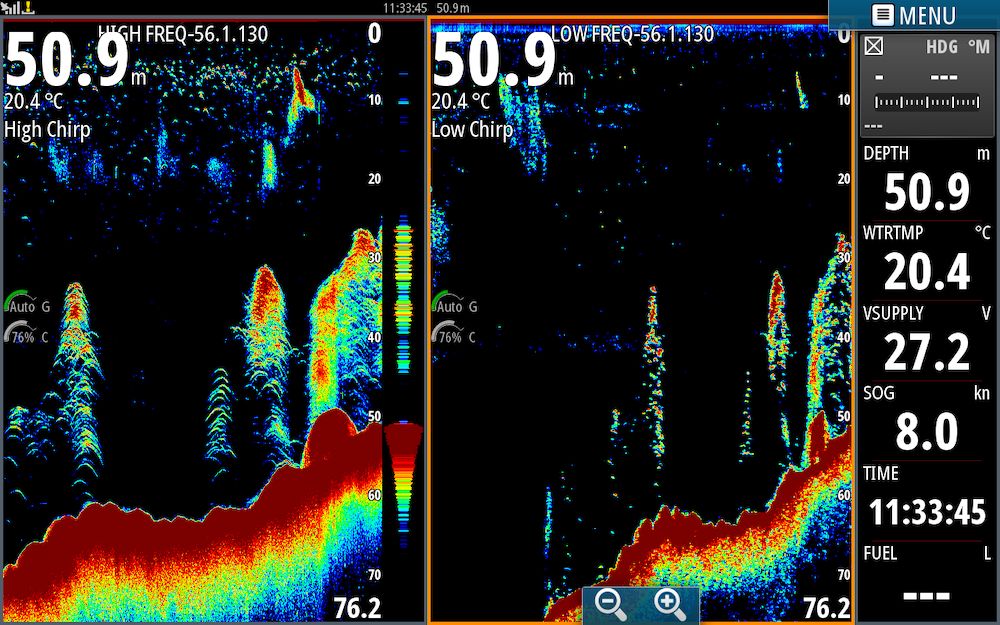

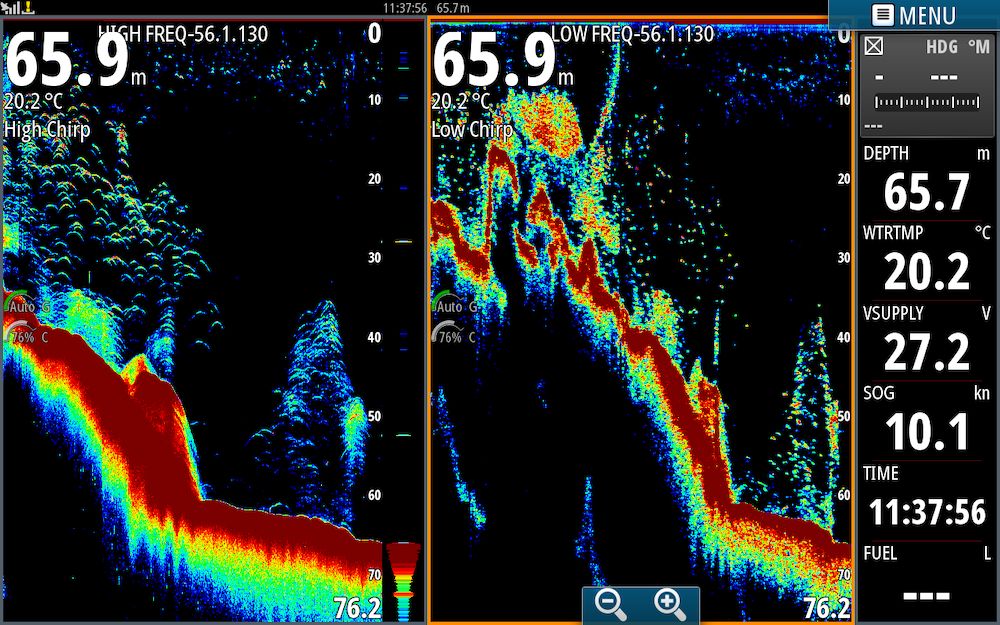

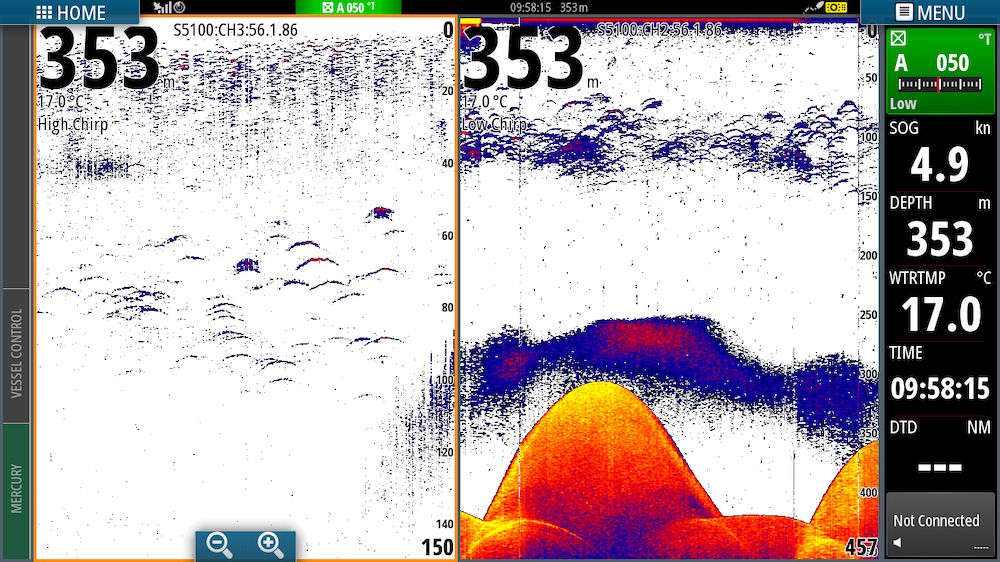

Simultaneous split-screen viewing of multiple depth ranges

Maximum depth of 3,000 metres / 10,000 feet (transducer dependent)

Plug-and-play 9-pin transducer connectors for easy installation

Comes With:

7 TO 9 PIN XD ADAPTER FOR AIRMAR XDCRS
000-13313-001
7-to-9 Pin Transducer Adapter Cable

ETHEXT-15YL
000-0127-29
15-foot Ethernet Extension Cable.

POWER CABLE, STANDARD 4PIN
000-00128-001
Power Cable

POWER CABLE, STANDARD 4PIN
000-00128-001
Power Cable

Technical Specs

Download The Spec Sheet
