Garmin

Reactor™ 40 Mechanical/Retrofit/Solenoid Corepack With GHC™ 50 Autopilot Instrument

$3,271.82 AUD
$3,599.00 AUD $3,271.82 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
This is a Sample Product Title
Was $200.00 Now $100.00

Warranty Details

Via the link, Garmin customers in Australia will find detailed warranty information; information regarding availability of repair facilities and parts including for out of warranty service; certain other information regarding repair or replacement of a Garmin product; and how to contact us in Australia for further information. https://www.garmin.com/en-AU/legal/consumer-warranty-repairs/

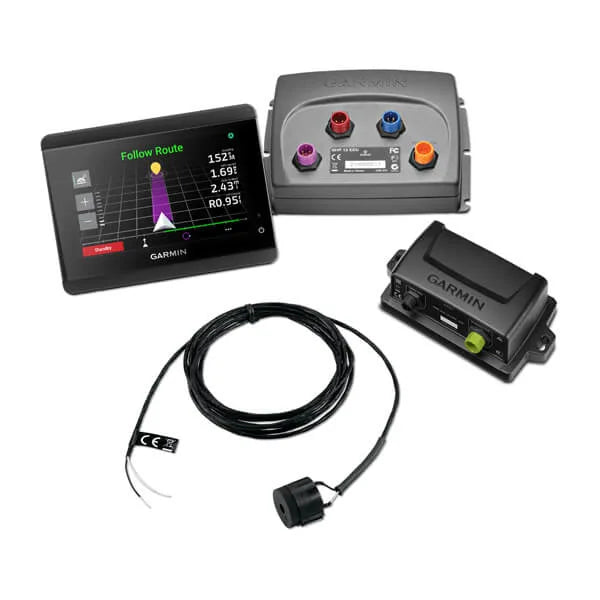

Reactor™ 40 Mechanical/Retrofit/Solenoid Corepack With GHC™ 50 Autopilot Instrument

EVERY CAPTAIN NEEDS A CO-PILOT

Designed for powerboats and sailboats, the Reactor 40 autopilot gives you the extra hand you need, so you can explore paradise worry-free.

The Reactor 40 mechanical/retrofit/solenoid corepack works with a wide variety of steering systems.

Yes, it features a solid-state 9-axis AHRS. And yes, that means you can mount it nearly anywhere.

Even when you’re pitching or rolling, this autopilot reacts to sea conditions to keep you on course.

You just want to get on the water, so we made calibration fast and easy. That’s the power of simple.

Combine with your compatible Garmin chartplotter, and control your autopilot — from anywhere on your boat.

Want more? The optional GHC™ 50 autopilot instrument enhances your autopilot experience.

Plot your paradise

COREPACK COMPATIBILITY

This corepack works with direct or cable-actuated steering systems to support heading hold, wind hold, step turns and tack/jibe modes.

SOLID-STATE 9-AXIS AHRS

With its advanced solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation. It even reduces power consumption, minimises heading error and more.

REACTS TO WATER CONDITIONS

Hold your course on the sea — this autopilot reacts to conditions, so you can remain confident even when you’re pitching or rolling.

SIMPLE CALIBRATION

All autopilots require commissioning and calibration. Reactor 40 makes it quick and easy.

SHADOW DRIVE™ TECHNOLOGY

Gain more freedom when maneuvering your boat. This corepack allows for optional Shadow Drive technology to automatically disengage the autopilot when you turn the wheel.

THREE CLASS DRIVES

Choose between class A, class B compact or class B drive units for your steering system (sold separately). All Garmin linear drives include built-in rudder feedback sensing.

WIRELESS REMOTE CAPABILITIES

Control your autopilot from anywhere on your boat by using your compatible Garmin devices, including the Reactor autopilot remote, select quatix® marine smartwatches and more (requires a compatible Garmin chartplotter or GHC 50 autopilot instrument).



Connect to everything on your boat.

OPTIONAL GHC 50 BUNDLE

Combine the Reactor 40 corepack with the GHC 50 autopilot instrument to add a dedicated, touchscreen autopilot display to your helm. Plus, GHC 50 allows you to share data and settings with Garmin MFDs and other installed Garmin devices.

POWERBOAT AND SAILING FEATURES

When connected to your compatible Garmin chartplotter, all Reactor 40 corepacks offer powerboat and sailing features, including heading hold and step turns — plus wind hold and tack/jibe when paired with a wind sensor (sold separately). You can even gain additional benefits such as the follow route and Auto Guidance+™ features1.

OPTIONAL GRF™ 10 SENSOR

For even more peace of mind, add the GRF 10 rudder feedback sensor to further enhance your autopilot’s performance (requires GHC 50 autopilot instrument or compatible Garmin chartplotter).

1Auto Guidance is for planning purposes only and does not replace safe navigation operations
Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.

Specs:

Buzzer/Alarm Specifications

  • Dimensions (L x Diameter): 29/32" x 1" (23 mm x 25 mm)
  • Weight: 2.4 oz (68 g)
  • Temperature range: from 5°F to 131°F (from -15°C to 55°C)
  • Cable length: 10 ft (3.0 m)
  • CCU dimensions: 4.3" x 4.4" x 1.9" (10.9 x 11.2 x 4.8 cm)
  • ECU dimensions: 6.6" x 4.6" x 2.1" (16.8 x 11.7 x 5.3 cm)
  • Supply voltage: 10 V to 30 V
  • Operating temperature: -15° C to 60 C° (5° F to 140° F)
  • Maximum sustained motor current: 15A
  • Maximum instantaneous motor current: 40A
  • Maximum clutch current: 2.5A (for drives requiring higher current than 2.5A, a relay needs to be added to the clutch circuit)

GHC 50 Specifications

In the box:

  • Reactor 40 CCU (Course Computer Unit)
  • GHC™ 50 helm control display
  • NMEA 2000® drop cables (2 metres)
  • NMEA 2000 T-connectors
  • Buzzer
  • Male and female terminators
  • Interconnect cable
  • ECU (Electronic control unit)
  • ECU (Electronic Control Unit) power cable
  • Documentation


Technical Specs

Download The Spec Sheet
