Navico

PDT-WBL 83/200 kHz Pod-Style Transducer w/ Temp Sensor

$180.90 AUD
$198.99 AUD $180.90 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
This is a Sample Product Title
Was $200.00 Now $100.00

Warranty Details

All claims are subject to standard testing procedures by its authorised representatives. Should a battery be deemed defective due to a manufacturing fault and is within its applicable warranty period; it will be replaced with an equivalent battery free of charge. Proof of purchase is required. You bear all transportation costs to and from testing centres. The warranty period is not renewed or extended as a result of a repair or replacement. Warranty is not transferable and is only offered to the original end user of the product. Cease using the goods when a fault arises and contact the supplier or manufacturer immediately. Warranty does not cover discharged batteries or diminishing capacity due to battery age and depth of discharge. This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. All warranties are to go through the manufacturer. Click here for full warranty details

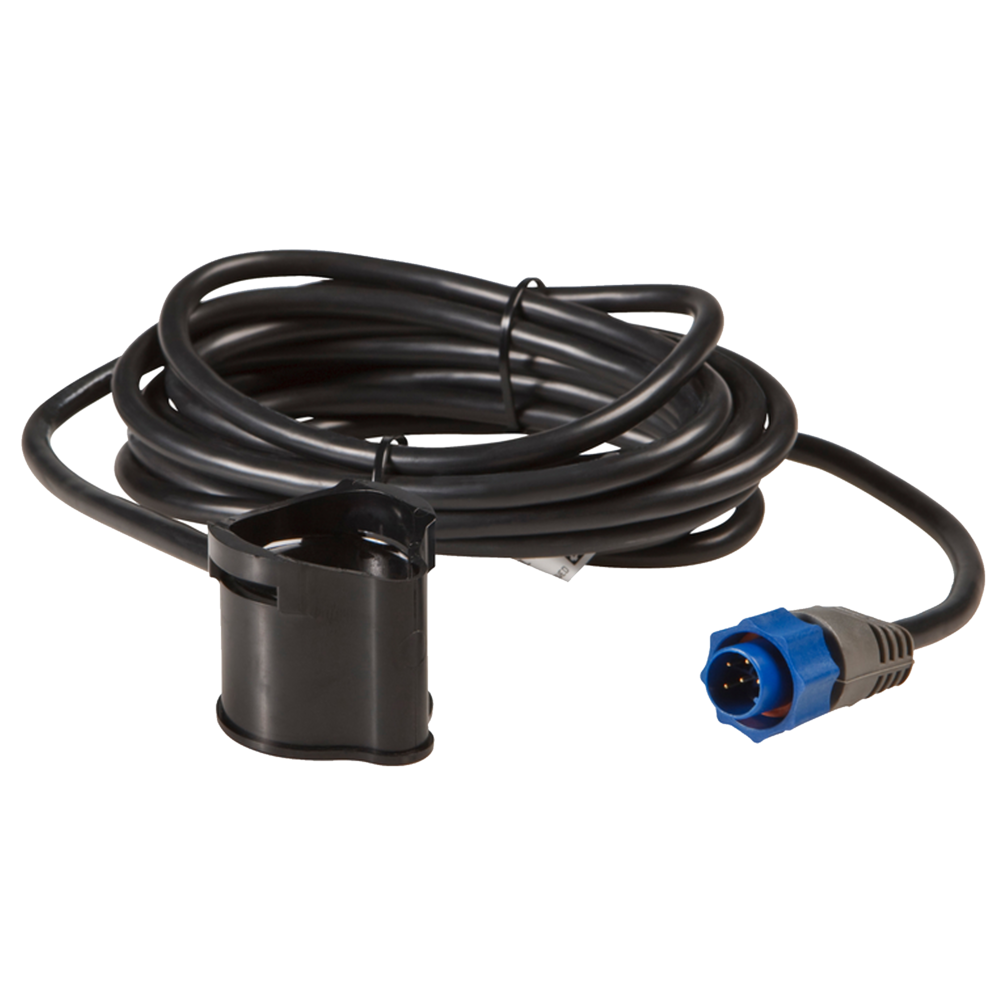

PDT-WBL 83/200 kHz Pod-Style Transducer w/ Temp Sensor

PDT-WBL 83/200 kHz Pod-Style / Trolling-Motor mount with built-in tempsensor and 7-pin blue connector. 6m (20ft) cable.

Dual Frequency



The dual-frequency PDT-WBL includes a single ceramic element delivering both 83 kHz with a 52° beam width, and 200 kHz with a 22° beam width. 83 kHz low-frequency operation offers a maximum operational depth of 300 m (1000 ft), while 200 kHz high-frequency provides higher-resolution fish arches and bottom detail in shallower water.



Depth/Temperature



One sensor does it all. Able to measure both depth and temperature in a single package, the PDT-WBL simplifies installation and requires just one connection to your echosounder module or multifunction display.



Mounting



The PDT-WBL is suitable for in-hull mounting in fiberglass hulls, or trolling-motor mounting with any hull type.



In-hull or “shoot-thru-hull” transducers don’t require a hole to be drilled in your boat’s hull for installation, and offer good high-speed performance and ease of maintenance, but reduced maximum depth and fishfinding performance versus thru-hull, transom, or other in-water installations.

83 kHz with 52° beam width
200 kHz with 22° beam width
Up to 300 m (1000 ft) range at 83 kHz
1 internal broadband ceramic
In-hull/Trolling Motor-mounted ‘pod style’
Suitable for fiberglass hulls
Ideal for outboards and I/O vessels up to 8 m (25 ft) in length
Recommended for use with the SonarHub sounder module, Simrad NSS evo2 & NSS sport multifunction displays
