Navico

HDI Skimmer L/H 455/800 7-pin - Black - 6m Cable -

$301.81 AUD
$331.99 AUD $301.81 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
This is a Sample Product Title
Was $200.00 Now $100.00

Warranty Details

All claims are subject to standard testing procedures by its authorised representatives. Should a battery be deemed defective due to a manufacturing fault and is within its applicable warranty period; it will be replaced with an equivalent battery free of charge. Proof of purchase is required. You bear all transportation costs to and from testing centres. The warranty period is not renewed or extended as a result of a repair or replacement. Warranty is not transferable and is only offered to the original end user of the product. Cease using the goods when a fault arises and contact the supplier or manufacturer immediately. Warranty does not cover discharged batteries or diminishing capacity due to battery age and depth of discharge. This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. All warranties are to go through the manufacturer. Click here for full warranty details

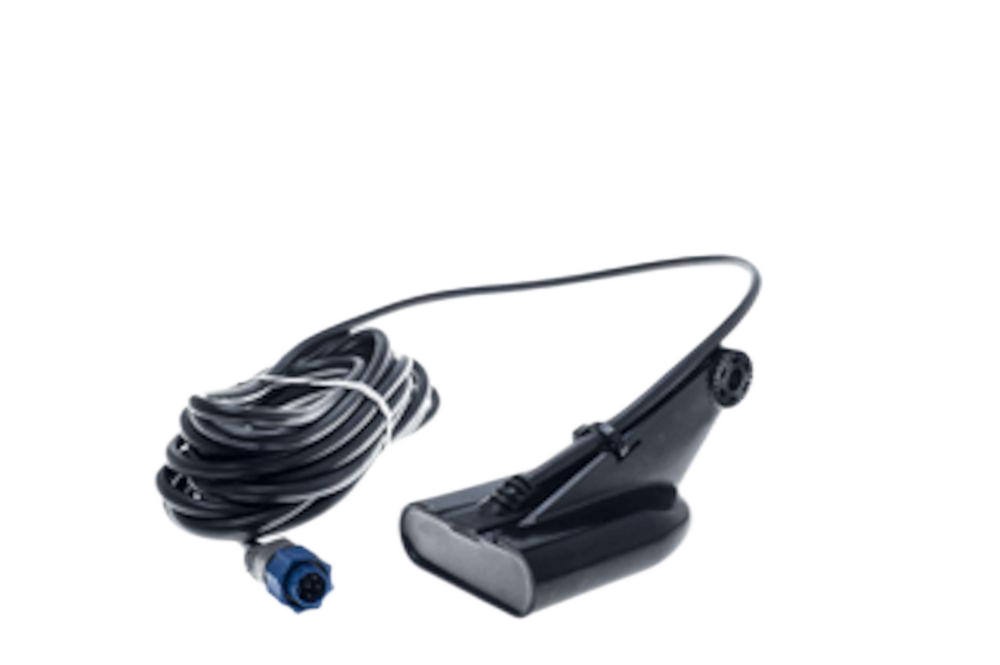

HDI Skimmer L/H 455/800 7-pin - Black - 6m Cable -

HDI Skimmer® transducer 50/200/455/800kHz with built in temp. Includes mounting bracket and hardware. Cable Length 6 m (20 ft)

Dual Frequency

The dual-frequency HDI Skimmer 50/200 includes a single ceramic element delivering both 50 kHz with a 29° beam width, and 200 kHz with a 12° beam width. 50 kHz low-frequency operation offers a maximum operational depth of 900 m (3000 ft), while 200 kHz high-frequency provides higher-resolution fish arches and bottom detail in shallower water.

DownScan Imaging™

High-frequency 455/800 kHz DownScan Imaging provides a life-like representation of the water column, bottom, and any structure beneath your vessel: see fish, rocks, weeds, and wrecks clearly pictured your multifunction display. DownScan is a powerful tool for locating fish-holding structure, finding wrecks or reefs to dive, or conducting searches and surveys.

Depth/Temperature

One sensor does it all. Able to measure both depth and temperature in a single package, the HDI Skimmer 50/200 simplifies installation and requires just one connection to your echosounder module or multifunction display.

Mounting

The HDI Skimmer 50/200 is suitable for transom mounting on any hull. Transom-mounted transducers are designed for smaller outboard and I/O boats, and are well suited to planing hulls. Transom mounting offers simple installation and maintenance, and the transducer can be adjusted easily to compensate for transom angle.// 800) {depth = 800;if (units == "f") {$("#transducerDepth").val(feet(depth));} else {$("#transducerDepth").val(depth);}}$("#transducerData tr.data").each(function() {x = $(this).find('td.coneAngle').text();x = x.substring(0,x.length-1);angle = parseFloat(x);if (units == "f") {$(this).find('td.beamwidth').text(feet(beamDiameter(depth, angle))+"ft");} else {$(this).find('td.beamwidth').text(beamDiameter(depth, angle)+"m");}});}function findOpposite(adjacent, angle) {return adjacent * (Math.tan(radians(angle/2)));}function radians(degrees) {return degrees *(pi/180);}function metres(feet) {return (feet*0.3048).toFixed(0);}function feet(metres) {return (metres*3.28084).toFixed(0);}function beamDiameter(depth, coneAngle) {return (findOpposite(depth, coneAngle)*2).toFixed(0);}getData();});// Calculate the beamwidth for this transducerHDI Skimmer 50/200FrequencyCone AngleBeamwidth50 kHz29° 200 kHz12°  Depth:  feetmetres

50 kHz with 29° beam width
200 kHz with 12° beam width
Up to 900 m (3000 ft) range at 50 kHz
1 internal broadband ceramic
Transom-mounted
Suitable for any hull
Ideal for outboards and I/O vessels up to 8 m (25 ft) in length
Recommended for use with the SonarHub sounder module & Simrad NSS evo2 multifunction displays

Technical Specs

Download The Spec Sheet
