Simrad

GO5 XSE - w/o Transducer - Boatbuilder 6pk

$717.27 AUD
$789.00 AUD $717.27 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
This is a Sample Product Title
Was $200.00 Now $100.00

Warranty Details

All claims are subject to standard testing procedures by its authorised representatives. Should a battery be deemed defective due to a manufacturing fault and is within its applicable warranty period; it will be replaced with an equivalent battery free of charge. Proof of purchase is required. You bear all transportation costs to and from testing centres. The warranty period is not renewed or extended as a result of a repair or replacement. Warranty is not transferable and is only offered to the original end user of the product. Cease using the goods when a fault arises and contact the supplier or manufacturer immediately. Warranty does not cover discharged batteries or diminishing capacity due to battery age and depth of discharge. This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. All warranties are to go through the manufacturer. Click here for full warranty details

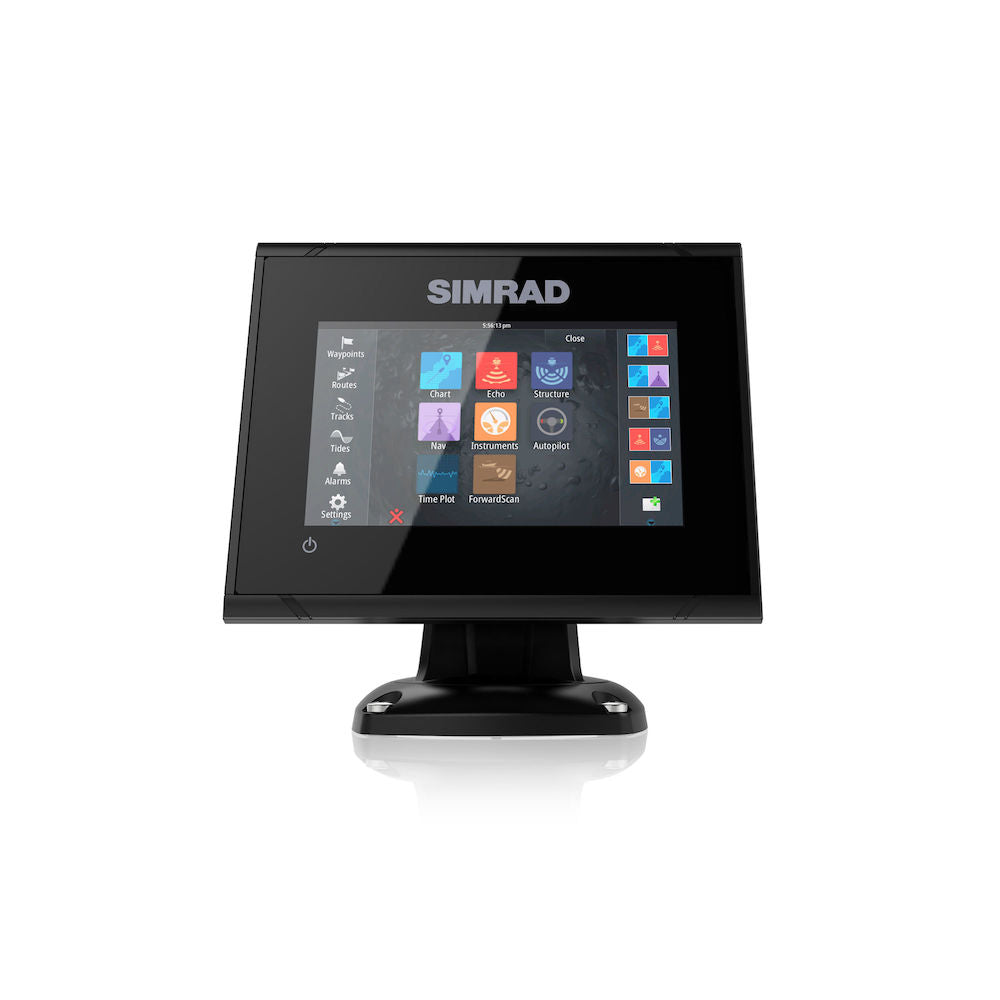

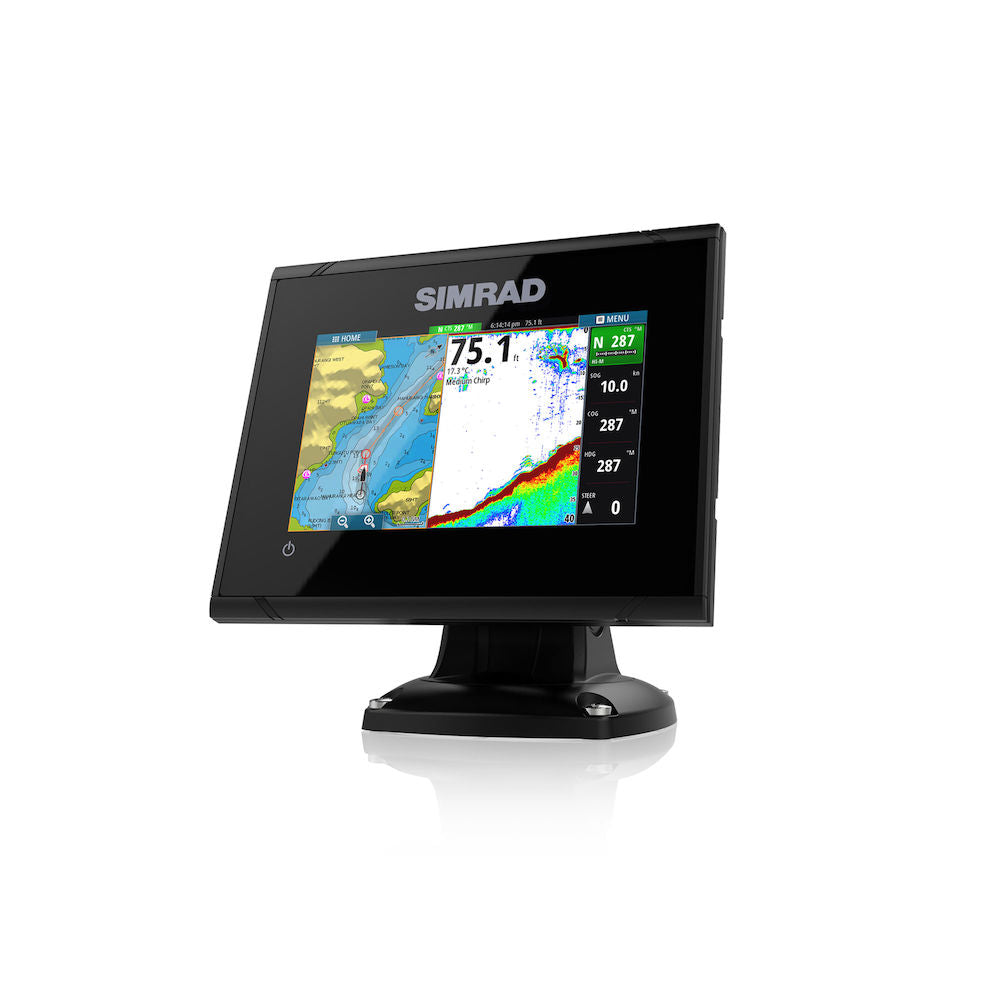

GO5 XSE - w/o Transducer - Boatbuilder 6pk

Simrad GO5 XSE – 5’’ Multifunctional Display with built in Echosounder, GPS and Wi-Fi. Super-bright, multi-touch widescreen display with NMEA 2000.

Approvals

Compliance CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1

Autopilot

Manouevres / Turn Patterns U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking

Connectivity

Bluetooth No
Ethernet No
N2K PGNs Recieve only59392 ISO Acknowledgement, 59904 ISO Request, 60928 ISO Address Claim, 65285 Temperature with Instance, 65323 Data User Group Request, 65325 Reprogram Status, 65341 Autopilot Mode, 65480 Autopilot Mode, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127503 AC input status, 127504 AC Output Status, 127505 Fluid Level, 127506 DC Detailed Status, 127507 Charger Status, 127508 Battery Status, 127509 Inverter Status, 129033 Time & Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Addressed Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 129809 AIS Class B “CS” Static Data Report, Part A, 129810 AIS Class B “CS” Static Data Report, Part B, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 130842 SimNet DSC Message, 130851 Event Reply, 130817 Product Info, 130820 Reprogram Status, 130832 Fuel Used - High Reolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130843 Sonar Status, Frequency and DSP Voltage,Transmit and Recieve:61184 Parameter Request/Command, 65289 Trim Tab Insect Configuration, 65291 Backlight Control, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 126208 ISO Command Group Function, 126992 System Time, 126996 Product Info, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, Water referenced, 128267 Water Depth, 128275 DistanceLog, 129025 Position, Rapid Update, 129026 COG & SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats in View, 130074 Route and WP Service - WP List - WP Name & Position, 130306 Wind Data, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130831 Suzuki Engine and Storage Device Config, 130835 SetEngineAndTankConfiguration, 130839 Pressure Insect ConfigurationTransmit only65287 Configure Temperature INSOcts, 65290 Paddle Wheel Speed Configuration, 129285 Route/Waypoint Data, 130818 Reprogram Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Insect Configuration, 130837 Fuel Flow Turbine Configuration
NMEA 0183 No
NMEA 2000 1 x NMEA 2000 Micro-C port, 1 LEN
PC Connectivity No
Video No
WiFi Yes

Display

Backlight Color White
Resolution 480 x 800, WVGA, 15:9
Screen Brightness 1200 nits
Size and Type 5" optically bonded TFT
Viewing Angles L/R: 70°, top: 50°, bottom: 60°

Electrical

Power Consumption, max. 12W
Recommended Fuse Rating 3A
Supply Voltage 10-17 V DC

Environment

Operating Temperature Range "-15°C to +55°C (5° F to 131° F)
Shock and Vibration CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
Storage Temperature Range "-20°C to +60°C (4°F to 140°F)
Waterproof rating IPX 7

GPS

Correction WASS, EGNOS, MSAS
GPS Receiver Channels 32 Channels
Position Accuracy Horizontal Accuracy 3 m (9.8 ft)
Time to First Fix Cold start 50 sec, Satellite Reacquisition 5 sec
Update rate 10 Hz

MFD

AIS No
Autopilot Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail). Requires STBY button or Controller with STBY button to commission
Cartography supported Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+)
Digital Switching BEP C-Zone
External Storage 1 MicroSD slots, max. 32GB each )>32 GB if formatted NTFS
GPS Internal, 10Hz, WASS, MSAS, EGNOS
Internal Storage 90 MB
Multimedia Touch screen
Sonar (inc. compatibility) Integrated CHIRP / DownScan / Forwardscan. (transdcuer required)
Waypoints, Routes, Tracks 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with upto 12,000 track points.

Physical

Dimensions (W x H x D) 2 Years
Mounting Type Bracket or Panel
Weight 537g (1.18lb)

Other

Warranty Period 2 Years
Interface Receive AIS data over NMEA 2000 only
Languages Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, SwedishAsian Language Pack: English (US), Japanese, Korean, Thai, Chinese, Eastern European Language Pack: English (US), English (UK), Bulgarian, German, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, TurkishRussia/Ukraine Language pack: English (US), English(UK), German, Spanish, French, Italian, Russian, UkrainianMiddle Eastern Language Pack: English (US), English (UK), Arabic, German, Spanish, Farsi, French, Italian
