Navico

ForwardScan™ Transducer Only

$665.45 AUD
$732.00 AUD $665.45 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
This is a Sample Product Title
Was $200.00 Now $100.00

Warranty Details

All claims are subject to standard testing procedures by its authorised representatives. Should a battery be deemed defective due to a manufacturing fault and is within its applicable warranty period; it will be replaced with an equivalent battery free of charge. Proof of purchase is required. You bear all transportation costs to and from testing centres. The warranty period is not renewed or extended as a result of a repair or replacement. Warranty is not transferable and is only offered to the original end user of the product. Cease using the goods when a fault arises and contact the supplier or manufacturer immediately. Warranty does not cover discharged batteries or diminishing capacity due to battery age and depth of discharge. This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. All warranties are to go through the manufacturer. Click here for full warranty details

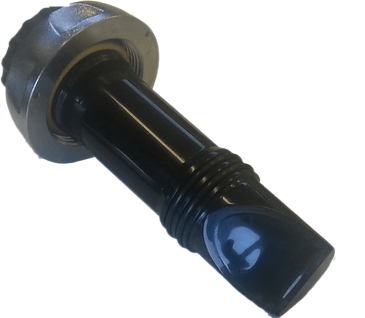

ForwardScan™ Transducer Only

ForwardScan™ Transducer Only. With 10m (33ft) Cable

Know What Lies Ahead
ForwardScan uses forward-looking sonar to give you a clear view of the bottom ahead of your boat. This award-winning technology is a powerful defence against running aground in shallow, unfamiliar, or poorly-charted waters. ForwardScan generally offers a forward view of 4-5 times your current depth; for example in 3 metres (10 feet) of water, see the bottom 12-15 metres (40-50 feet) ahead. Under ideal conditions ForwardScan can see even further, looking ahead up to 8 times your current depth. The 180 kHz ForwardScan transducer is designed to minimise interference from common 200 kHz transducers, enabling it to be used alongside existing fish-finding or depth-tracking sonar.

Simple 2D View and Chart Overlay
See a simple, immediately understandable view of the bottom ahead. Bottom Colour Tracking shows the bottom as a solid terrain in an uncluttered, side-on picture. For more detail, you can choose to display sonar returns from throughout the water column; these can illustrate other potential hazards such as dock posts. Perfect for cruising, you can also overlay ForwardScan depth data on charts: Heading Line View uses colour-coded segments to represent deep, medium, and shallow water ahead. Depths are customisable to suit your boat’s draught, and a shallow depth alarm helps to ensure you’re never caught unaware.

Easy On-Water Installation for ForwardScan-Ready Boats
The ForwardScan transducer can be installed on the water, in just a few minutes, for boats already fitted with the ForwardScan mounting sleeve. Just remove the blanking plug, install the transducer into the sleeve, and connect the cable to your compatible Simrad multifunction display or sounder module. A self-closing valve built into the sleeve minimizes water ingress during installation. For boats without a pre-fitted sleeve, the complete ForwardScan kit (sold separately) includes a transducer, sleeve, and fairing block.

Simple 2D view of the bottom ahead

Navigate safely with ForwardScan data overlaid on charts

Look ahead up to 8 times your current depth (generally 4-5 times)

Designed to minimize interference from existing 200 kHz transducers

Built-in water temperature sensor offers extra value

Easy installation and maintenance with an on-water removable transducer

Connects to the StructureScan® HD port on compatible displays or sounder modules

Technical Specs

Download The Spec Sheet
